Premier Manufacturer of Non Pusher Seal in India

Sealventures is a distinguished manufacturer, supplier, and global exporter

specializing in high-performance Non Pusher Seal. Based in Mumbai, India, we engineer both Balanced and Unbalanced designs specifically optimized for pumps, compressors, and rotating equipment.

Our precision-engineered seals serve as direct, high-quality equivalents to industry-standard brands such as John Crane, Burgmann, Flowserve, AES, Chesterton, Vulcan, and Roten, ensuring seamless integration and reliability.

Engineering Excellence & Technical Specifications

At Sealventures, we leverage advanced manufacturing technologies and rigorous quality control to produce pusher seals that withstand demanding industrial environments.

Value-Driven Solutions and Global Logistics

We are committed to providing cost-effective sealing solutions without compromising on material integrity. Our streamlined production and logistics framework ensure:

Comprehensive Product Portfolio

As a leading Mumbai-based authority in sealing technology, Sealventures provides a comprehensive range of mechanical seals and support systems tailored to diverse industrial needs.

Our extensive portfolio includes Conical Spring Seals, Single and Multi Spring Seals, Rubber and PTFE Bellow Seals, Cartridge Seals, Metal Bellow Seals, Agitator and Reactor Seals, Dry Running Seals, Split Seals. Beyond our standard and custom-engineered seals, we offer essential support hardware—including Supply Systems and Bearing Isolators —to ensure maximum operational reliability.

SV-RBRT-51 / RBRT-51
SV-RBRT-51 / RBRT-51

ROBIN TYPE RUBBER BELLOW MECHANICAL SEAL

Materials

Seal Ring Faces : Carbon, SiC and TC
Seat Faces : NiR, Ceramic, SiC and TC
Secondary Seal : Viton, Neoprene, EPDM, NBR and Buna-N
Metal parts : SS 304, SS 316 & etc.

Operating Range

Shaft Dia: 10mm to 100mm
Pressure: Up to 8 bar
Temperature: −20°C to 180°C
Speed: Up to 3000 RPM

Features

  • For plain or stepped shafts
  • Single seal
  • Unbalanced design
  • Torque transmission by elastomer bellow
ENQUIRY NOW DOWNLOAD
SV-RBRT-51D

RUBBER BELLOW ROBIN TYPE DOUBLE SEALS

Materials

Seal Ring Faces: Carbon, SiC and TC
Seat Faces:NiR, Ceramic, SiC and TC
Secondary Seal:Viton, Neoprene, EPDM, NBR and Buna-N
Metal parts:SS 304, SS 316 & etc.

Operating Range

Shaft Dia: 10mm to 100mm
Pressure: Up to 8 bar
Temperature: −20°C to 180°C
Speed: Up to 3000 RPM

Features

  • For plain and stepped shafts
  • Single seal
  • Unbalanced
  • Torque transmission by elastomer bellow
ENQUIRY NOW DOWNLOAD
SV-RBRT-51D
SV-RBT51-11 / 12 / 13
SV-RBT51-11 / 12 / 13

RUBBER BELLOW UNBALANCED MECHANICAL SEALS

Materials

Seal Ring Faces : Cabon, SiC and TC
Seat Faces :NiR, Ceramic, SiC and TC
Secondary Seal :FKM, EPDM, Silicon, NBR
Metal parts :SS 304, SS 316, Hast-C, Alloy-20 & etc.

Operating Range

Shaft Dia: 10mm to 100mm
Pressure: Up to 20 bar
Temperature: -40°C to +150°C
Speed: Up to 3000 RPM

Features

  • For plain shafts
  • Single seal
  • Unbalanced design
  • Drive bands protect to bellows
  • Torque transmission by elastomer bellow
ENQUIRY NOW DOWNLOAD
SV-MG-1 / MG-12 / MG-13

ELASTOMER (RUBBER) BELLOW MECHANICAL SEALSL

Materials

Seal Ring Faces: Carbon, SiC and TC
Seat Faces:NiR, Ceramic, SiC and TC
Secondary Seal:Viton, Neoprene, EPDM, NBR and Buna-N
Metal parts:SS 304, SS 316 & etc.

Operating Range

Shaft Dia: 10mm to 100mm
Pressure: Up to 15 bar
Temperature: -20°C to 150°C
Speed: Up to 3000 RPM

Features

  • For plain shafts
  • Single seal
  • Unbalanced
  • No torsion on bellows
  • Torque transmission by elastomer bellow
ENQUIRY NOW DOWNLOAD
SV-MG-1 / MG-12 / MG-13
SV-MB61 / SV-MB61-V
SV-MB61 / SV-MB61-V

METAL BELLOW BALANCED MECHANICAL SEAL

Materials

Seal Ring Faces : Carbon, SiC and TC
Seat Faces :SiC and TC
Secondary Seal : Viton, PTFE, FEP, EPDM and FFKM
Metal parts : SS 304, SS 316, Hast-C, Alloy-20 & etc.
Bellow MOC :AM350, Inconel®, Hastelloy® C-276

Operating Range

Shaft Dia: 25mm to 100mm
Pressure: Up to 25 bar
Temperature: −30°C to 260°C
Speed: Up to 3000 RPM

Features

  • For plain shafts
  • Single seal
  • Balanced
  • Independent of direction of rotation
ENQUIRY NOW DOWNLOAD
SV-MB62-G

METAL BELLOW GRAFOIL PACKING BALANCED SEAL

Materials

Seal Ring Faces: Carbon, SiC and TC
Seat Faces:SiC and TC
Elastomer:Flexible Graphite
Bellow MOC:AM350, Inconel®, Hastelloy® C-276
Metal parts: SS 316, Hast- C and Carpenter 42

Operating Range

Shaft Dia: 25mm to 100mm
Pressure: Up to 25 bar
Temperature: −40°C to 350°C
Speed: Up to 3000 RPM

Features

  • For plain shafts
  • Single seal
  • Balanced
  • Independent of direction of rotation
ENQUIRY NOW DOWNLOAD
SV-MB62-G

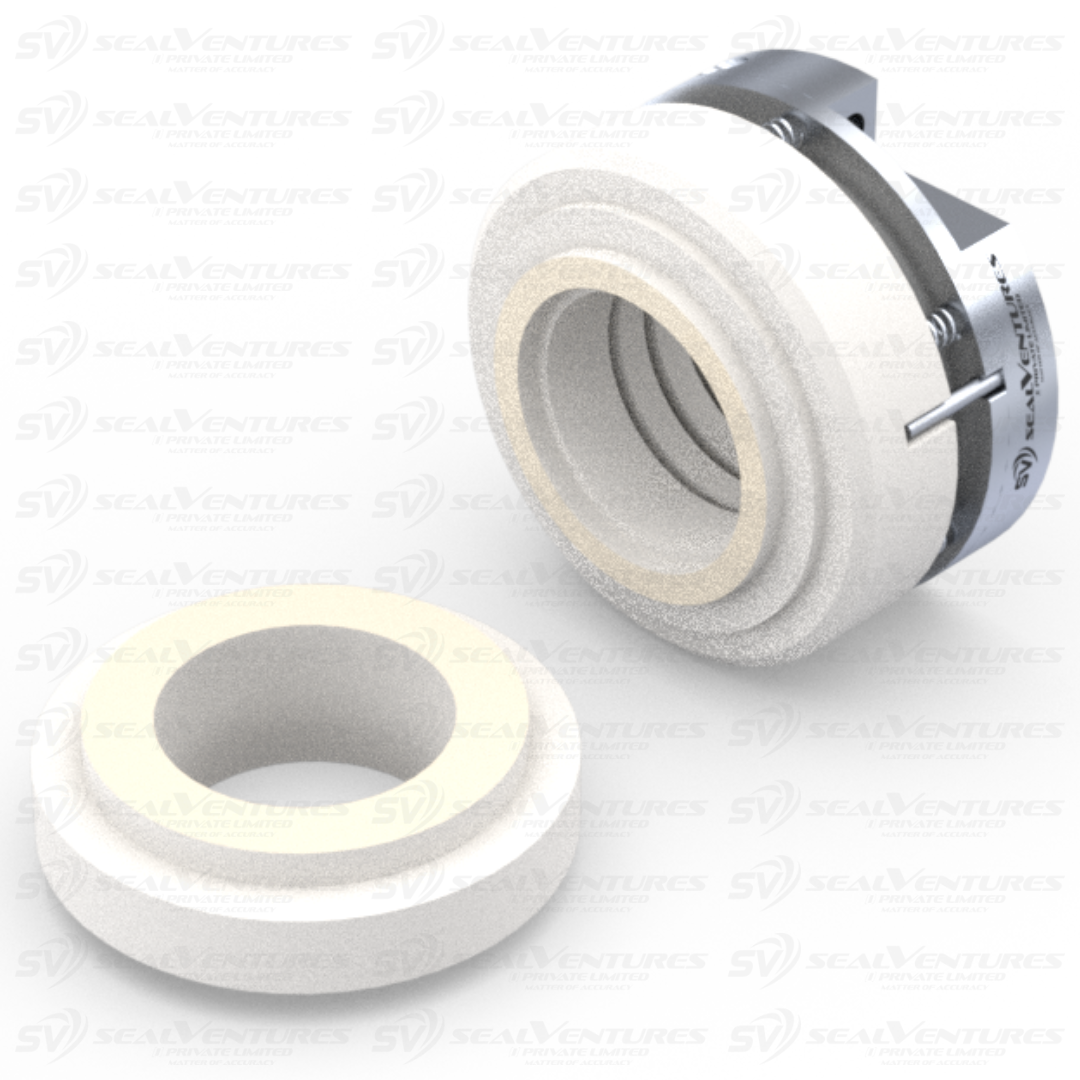

SV-TB71
SV-TB71

TEFLON (PTFE) BELLOW MECHANICAL SEAL

Materials

Seal Ring Faces : Carbon, SiC and TCc
Seat Faces :Ceramic and SiC
Elastomer :PTFE and GFT
Metal parts : SS 316, Hast -C and Alloy 20
Bellow MOC :PTFE + GFT Composite

Operating Range

Shaft Dia: 25mm to 100mm
Pressure: Up to 25 bar
Temperature: −45°C to +120°C
Speed: Up to 3000 RPM

Features

  • For plain shafts
  • Maximum corrosion resistance
  • Outside mounted
  • Independent of direction of rotation
ENQUIRY NOW DOWNLOAD

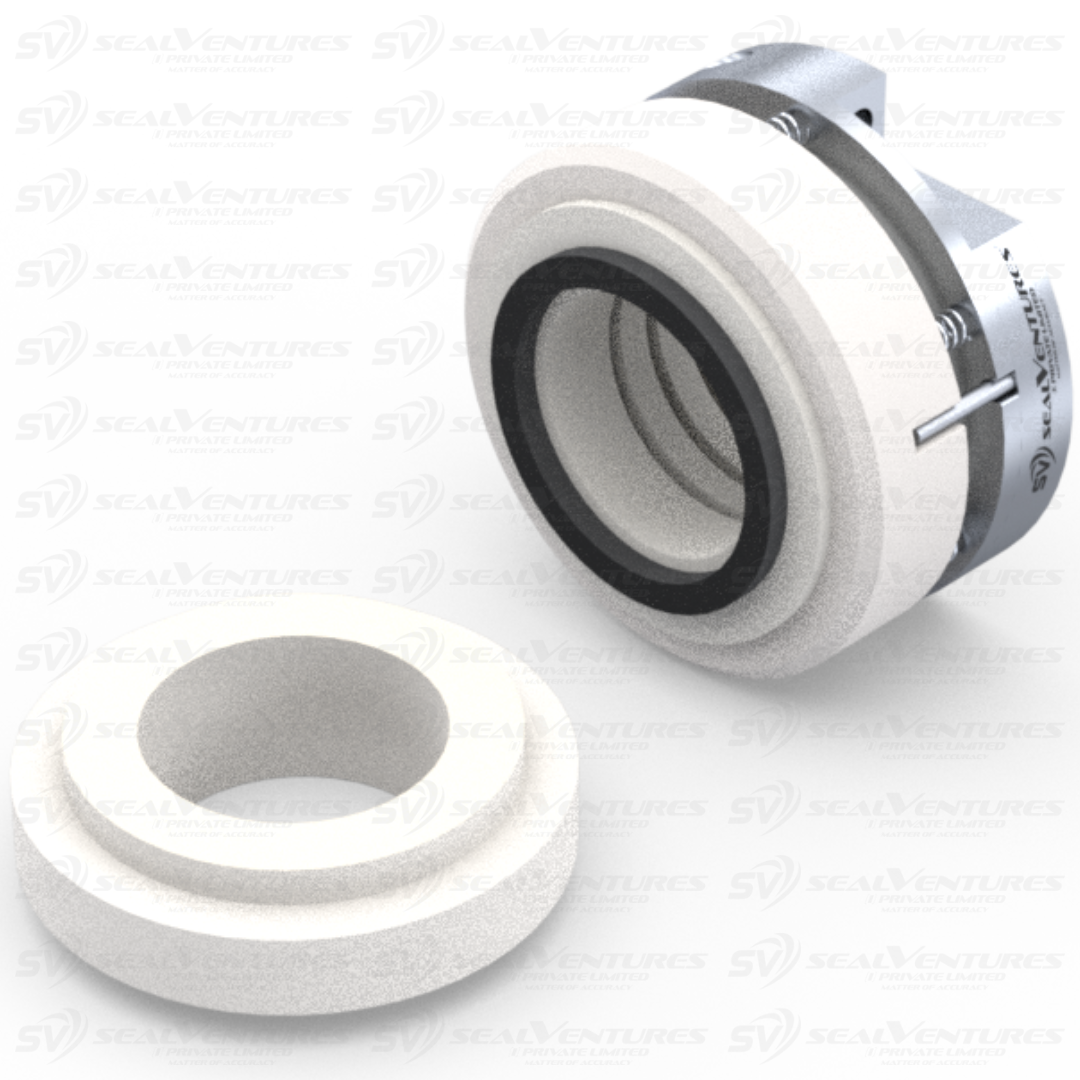

SV-TB71-R

TEFLON (PTFE) BELLOW MECHANICAL SEAL

Materials

Seal Ring Faces: Carbon, SiC and TCc
Seat Faces:Ceramic and SiC
Elastomer:PTFE and GFT
Bellow MOC:PTFE + GFT Composite
Metal parts:SS 316, Hast -C and Alloy 20

Operating Range

Shaft Dia: 25mm to 100mm
Pressure: Up to 25 bar
Temperature: −45°C to +120°C
Speed: Up to 3000 RPM

Features

  • For plain shafts
  • Maximum corrosion resistance
  • Outside mounted
  • Independent of direction of rotation
ENQUIRY NOW DOWNLOAD
SV-TB71-R
